Category Archives: Windows Server 2008

Saving Windows Disk Space | Windows System Cleanup

Leave a Reply

Although nowadays HDD space is a cheap commodity there is always a Windows C:\ running somewhere with a partition that is busting at the seams and ready to explode. I’ve seen it too many times…

As there are a number of common culprits for these space eating monsters I’m going to post the fixes here in one sweet spot, the “Windows System Cleanup” post.

Windows “Hiberfil.sys”

Hibernate mode uses the hiberfil.sys file to store the current state (memory) of the PC on the hard drive and the file is used when Windows is turned back on.
Always a cause of taking up C:\ the easiest option is to switch it off. Use the following command line to disable:

Enter "powercfg.exe -h off"

Pagefile.sys is a windows system file used as a swap file and was designed to improve performance. Windows uses it as memory location in case the application you’re running ends up needing more RAM than you actually have. This file is stored on the C:\ root but can take up space. Best option is to move it or reduce it (Reducing isn’t really a recommended option)

  1. Right click on ‘PC’.
  2. Left click on ‘Properties’.
  3. Left click on ‘Advanced system configuration’.
  4. If needed, left click on ‘OK’.
  5. Select ‘Advanced options’ tab.
  6. Left click on ‘Configuration’ inside ‘Throughput’.
  7. Select ‘Advanced options’ tab.
  8. Left click on ‘Change’ inside ‘Virtual memory’.
  9. Edit your preferences.
  10. Close all the opened windows by accepting.

Windows “Search” Folder

?

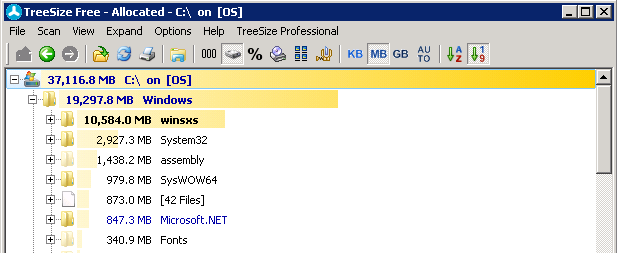

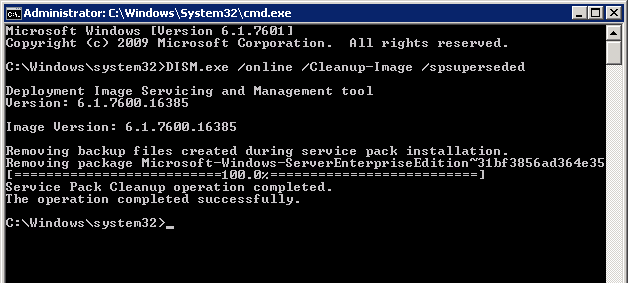

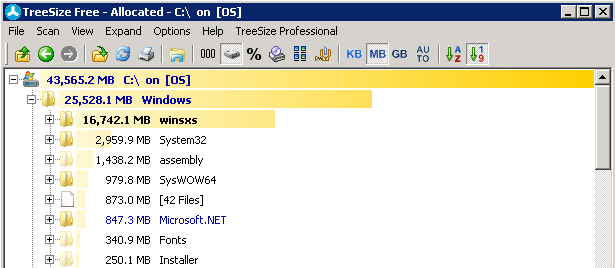

Windows “WINSXS” Folder

Reference this post: Saving Windows Disk Space | Reducing Size of WINSXS folder | Server 2008 R2

Windows Shadow Copies

Shadow copies take up space in C:\System Volume Information (Hidden Folder) They can be reduced or completely deleted using VSSAdmin

Shows Shadow Copy Versions:

vssadmin list shadowstorage

Deletes all Shadow Copies:

vssadmin delete shadows /all

BranchCache “PeerDistRepub” folder

BranchCache is basically a cached version of updates from Microsoft. Folder can be flushed/cleared using netsh
Check Cache

netsh branchcache show status all

Flush Cache

netsh branchcache flush

Uninstall BranchCache Feature (PowerShell)

Uninstall-WindowsFeature Branchcache

Migrate Folder Shares | PowerShell

Leave a Reply

Basic objective, we’ve got a ton of shares which we need to move to a new server. The data has already been replicated but we need to re-share.
There are methods of doing this by exporting the registry but being a little scared of messing up the current shares and requiring a reboot I decided to do this manually…

Export list of shares on source server:

get-WmiObject -class Win32_Share -computer servername.fqdn.com | Export-Csv -Path "C:\Shares.csv"

Create shares on destination server:

Powershell:

Need the powershell command here

CMD Net Share

net share "ShareName"="D:\Path\FolderName" /grant:everyone,FULL

Reference:
https://docs.microsoft.com/en-us/powershell/module/microsoft.powershell.utility/export-csv?view=powershell-6
https://gallery.technet.microsoft.com/scriptcenter/Creates-New-Share-with-fb22d905
http://www.tomsitpro.com/articles/use-fileshare-powershell-cmdlets-server-2016,2-1053.html

DFS | DFSR Removal of Staging Directory

Leave a Reply

After removing DFS shares on a server there may be some leftover files in the “DFSR” cache, this is a hidden location within the “System Volume Information”. This can be a tricky one to delete but can be completed using some CLI.

Take Ownership of folder

icacls "e:\system volume information" /grant Administrator:F
DFSR_Removal01

Remove Directory (Silent & whole directory tree)

rd "e:\system volume information\dfsr" /s /q
DFSR_Removal02

DFS | Site Links, Server Target Prioritization & Reference Info

Leave a Reply

DFS Setup and Configuration Notes

I like DFS, the main issue I found is setting it up, tailoring it to your needs, debugging and configuring which can be a bit troublesome. I’ve spent a while trying to implement and tweak it for a large scale network (17 x Sites using DFS-N & DFS-R) I’ve list a number of articles/URLs which have proven useful on my DFS internet travels…

Continue reading →

VMWare | “Unable to locate the required Sysprep files”

Leave a Reply

Yes the year is 2016! and Yes we are still converting Server 2003 onto VMware! (I know Server 2003 is dead and 13 years behind the times, but there are still some instances in our organisation that still require it for old bespoke software that can’t be easily moved to Server 2013/2016)

When converting a physical “Server 2003” machine to a virtual machine using VMware Converter this error displays:

“Warning: Unable to locate the required Sysprep files. Upload them under ‘C:\ProgramData\VMware vCentre Converter Standalone\sysprep\svr2003’ on the Converter server machine. See ‘Help’ for more details”

VMware_Server2003_Conversion1

Continue reading →

Windows Time Commands | Cheatsheet

Leave a Reply

Check time service is running (Local & Remote):

sc query w32time
sc \\HOSTNAME query w32time

Displays all local time information (Local & Remote):

w32tm /query /configuration
w32tm /query /configuration /computer:HOSTNAME

Display Windows Time service status (Local & Remote):

w32tm /query /status
w32tm /query /status /computer:HOSTNAME

Display Windows Time service source (Will return one line: local CMOS vs Server) (Local & Remote):

w32tm /query /source
w32tm /query /source /computer:HOSTNAME

Display a list of peers and their status:

w32tm /query /peers

Displays current time (local source)

Time /T

Resync local computer time against time server: (run on all servers, except time server)

w32tm /resync /rediscover

Force local computer time to update against domain server (Local & Remote):

w32tm /config /syncfromflags:domhier /update
w32tm /resync /rediscover w32tm /resync
w32tm /config /syncfromflags:domhier /update /computer:HOSTNAME
w32tm /resync /rediscover w32tm /resync

Start time server via CLI (Local & Remote)

net start w32time
SC \\HOSTNAME net start w32time

Restore Windows Time Service (if it has been broken)

net stop W32Time
w32tm /unregister
w32tm /register
net start W32Time
sc query W32Time

Set Time Update NTP source

@echo off
net stop w32time
w32tm /config /syncfromflags:manual /manualpeerlist: 0.uk.pool.ntp.org
w32tm /config /reliable:yes
net start w32time
w32tm /query /peers
PAUSE

Event Viewer Error Message:

Event Type: Error

Event Source: W32Time

Event Category: None
Event ID: 12

Description: Time Provider NtpClient: This machine is configured to use the domain hierarchy to determine its time source, but it is the PDC emulator for the domain at the root of the forest, so there is no machine above it in the domain hierarchy to use as a time source. It is recommended that you either configure a reliable time service in the root domain, or manually configure the PDC to synchronize with an external time source. Otherwise, this machine will function as the authoritative time source in the domain hierarchy. If an external time source is not configured or used for this computer, you may choose to disable the NtpClient.

To resolve the eventID 12:

  • w32tm /register

Reference:

DNS | Modify DNS entry CMD

Leave a Reply

Add/Remove a DNS record without the GUI

Add

dnscmd [ServerName] /recordadd [ZoneName] [NodeName] RRType> <RRData]
dnscmd UK-WDC01 /RecordAdd edwardsd.local UK-ESX01 A 192.168.1.5

Delete

dnscmd <ServerName> /recorddelete <ZoneName> <NodeName> <RRType> <RRData>[/f]
dnscmd UK-WDC01 /recorddelete edwardsd.local UK-ESX01 A 192.168.1.5

Reference: DNSCMD Examples

Windows Commands | Powershell

Leave a Reply

A few random PowerShell commands in Windows to help complete tasks:

Create New AD User:

New-ADUser -SamAccountName U1 -Name "User 1" -AccountPassword (ConvertToSecureString -AsPlainText "p@ssw0rd" -Force) -Enabled $true -Path 'OU=Test,DC=FABRIKAM,DC=COM'

Displays if “Desktop Experience” is installed:

Get-WindowsFeature *Desktop*

Installs “Desktop Experience” Feature:

Add-WindowsFeature Desktop-Experience

Remove Windows Patches

wusa /uninstall /kb:2952664

Clear all log entries
Although previous logs in event viewer can be helpful for diagnostics, I find old errors sometime cloud the current issues. In order to quickly clear all evertvwr logs entries you can use the following powershell command

wevtutil el | Foreach-Object {Write-Host "Clearing $_"; wevtutil cl "$_"}

Bypass code Execution

Usually if you get this error “PowerShell says “execution of scripts is disabled on this system.” the quick option is to bypass the execution policy:

Set-ExecutionPolicy Unrestricted

Enable ICMP (Ping) & WMI | CMD Line

1 Reply

Without enabling ICMP ping requests will not get a reply from the server.

Enable ICMP using “netsh firewall” (Old Method):

netsh firewall set icmpsetting 8

Enable ICMP using “netsh advfirewall” (New Method):

netsh advfirewall firewall add rule name="ICMP Allow incoming V4 echo request" protocol=icmpv4:8,any dir=in action=allow

Enable WMI using “netsh advfirewall” (New Method):

netsh advfirewall firewall set rule group="windows management instrumentation (wmi)" new enable=yes

Unable to Access DFS Share | Windows 7 Mapped Drives

Leave a Reply

Mapped network drive to DFS share is not allowing access.

“This operation is supported only when you are connected to the server”

If you try to remap the drive with different credentials the following error appears:

The network folder specified is currently mapped using a different username and password.

To connect using a different user name and password, first disconnect any existing mappings to this network share.

Looking in the EventVWR the following is logged:

EventID1004: Path \Server\DFS transitioned to slow link with latency = 115 and bandwidth = 13265936

  • Rebooting doesn’t fix the issue
  • Remapping doesn’t fix the issue.
  • Entering the direct server UNC path allows full access (as it should)
  • Applied regedit to force Auto Reconnect to the server but still didn’t fix the issue.
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\NetCache]
"SilentForcedAutoReconnect"=dword:00000001

Fix:

In the end the really simple workaround was to “Disable Offline File Sync” and reboot the system. All working again!

“Control Panel -> Sync Centre ->  Manage offline files -> Disable Offline Files”

Reference:

http://blogs.technet.com/b/askds/archive/2011/12/14/slow-link-with-windows-7-and-dfs-namespaces.aspx
https://www.conetrix.com/Blog/post/Fixing-Problem-With-Windows-7-Shared-Files-and-Mapped-Drives-Unavailable-Over-VPN.aspx

Windows Backup | Adding Multiple External HDDs

Leave a Reply

Windows Backup can be configured to use multiple external hard drives as the target. This way you can setup a hard drive rotation system i.e. Mon: USB_HDD1, Tue: USB_HDD2, Wed: USB_HDD1

Ideally both HDDS (or more) need to be connected at the same time when you configure the backup from the GUI. If you do not have both HDDS connected this can be accomplished using the WBADMIN command line tool.

Locate the HDD identifier using “get disk” and add it to the job using “-addtarget”.

wbadmin get disks
WBADMIN ENABLE BACKUP -addtarget:{xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx}

Reference:

PSEXEC | Remove File Share Remotely

Leave a Reply

Sometime it takes time to go and speak to a user, then stop what they are doing so you can make a change or tweak on their PC/Laptop so I like to do this in the background remotely without their knowledge (Hey! I’m an Admin that’s what I do)

PSEXEC has become a good friend for doing this!
I usually dump the “psexec” exe in the c:\Windows\System32 folder so I don’t have to change CMD paths. (Remember you need to run CMD as the user with access to the remote system for this to work)

Remove Share Remotely:

psexec \\PCNAME net share <SHARENAME> /delete

Map Drive Remotely:

psexec \\PCNAME net use S: \\SERVER\SHARE

RSAT Across Domains | Security database on the server does not have a computer account for this workstation trust relationship

Leave a Reply

Problem when trying to use RSAT to remotely administer a different domain.

“Security database on the server does not have a computer account for this workstation trust relationship”

SecurityDBTrustRelationship

There are numerous blog/forum posts regarding the cause of this error, however most are related to workstations on the local domain not being able to authenticate to the local DC. (The quick fix being to remove the network cable, login with the cached credentials and remove/readd the PC to the domain.

On this occasion I was trying to use RSAT to manage DHCP on an alternative domain. The connectivity is in place with a Non-Transitive Trust between Domain A and Domain B but I was trying to administer Domain C!

The really simple fix was to use the command line “runas /netonly” which allows MMC to run as an alternative user (in the destination domain) seamlessly “/netonly” allows you to run applications as a local user but authenticating over the network as another user.

runas /netonly /user:domain\username "mmc dhcpmgmt.msc /server=DC"

Note: On Windows Server 2008 holding the “shift” key and right clicking on MMC will not display the “runas” function as in Windows Server 2008 R2 or Windows 7. A quick workaround is to use the “ShellRunAs” Sysinternals tools. Simply drag and drop the exe/msc onto the tool and it will prompt to run with alternative credentials.

References: http://ss64.com/nt/runas.html

SubACL & iCALCS

Leave a Reply

SUBINACL (SubInACL.exe)

SubInACL is an alternative command line tool to iCACLS that enables administrators to obtain security information about files, registry keys, and services, and transfer this information from user to user, from local or global group to group, and from domain to domain.

iCACLS

iCACLS example of modifying file permissions:

@echo off
REM ** /T = Performs the operation on all specified files in the current directory and its subdirectories.
REM ** /F = Full Access
REM ** /M = Modify Access
if exist "C:\Program Files (x86)" goto 64
icacls "%ProgramFiles%\Folder" /inheritance:e /grant "MyDomain\Domain Users":M /T
goto next
:64
icacls "%ProgramFiles(x86)%\Folder" /inheritance:e /grant "MyDomain\Domain Users":M /T
next
pause

AD LDAP Attributes | Common Entries

Leave a Reply

List of common LDAP AD fields which can be used with the “DSQuery” or other tools which lookup AD objects.

csvde -m -f c:\DSQueryUsers.csv -d "OU=Users,OU=UK,DC=domain,DC=localm" -r "(&(objectClass=*)(mail=*))" -l displayName,userPrincipalName

In order to simplify the process of creating LDAP queries you can use the SysInternals “Active Directory Explorer” tool to help with this process.

See Below for table:

Continue reading →

Adding “Trusted Sites” to IE10 | Regedit | BAT | GPO

2 Replies

I’ve been looking for a simple method to add trusted sites into Internet Explorer 10 since they removed the “Internet Explorer Maintenance” (“The Internet Explorer Maintenance (IEM) snap-in is replaced by the Internet Explorer 10 preference extension”) options from the Server 2012 GPO.

Unfortunately a number of the methods for “adding trusted sites” prevent the local user from being able to customise the list with any additional sites. The method below is the quickest I have found to add a site to the “trusted sites” whilst also allowing users customisation. The following will add “work.edwardsd.co.uk” to the trust sites list:

*.BAT File Method:

REM See http://technet.microsoft.com/en-us/library/cc732643.aspx for Reg Commands/Switches
REG ADD "HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap\Domains\edwardsd.co.uk\work" /v "http" /t REG_DWORD /d 00000002 /Y

*.REG Method:

Windows Registry Editor Version 5.00
[HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap\Domains\edwardsd.co.uk\work]
"https"=dword:00000002

Note: The dword number represents the following values:

  • 1: Intranet sites
  • 2: Trusted Sites
  • 3: Internet
  • 4: Restricted Sites.
"https"=dword:00000001
"https"=dword:00000002
"https"=dword:00000003
"https"=dword:00000004

GPO Method:
The alternative option would be to use a GPO, usually my preference however I found this a little bit more complex so opted for the *.BAT option. This is a top site for GPO guides: GPO to configure IE zones sites (remember if you use this method the users can’t make changes themselves, but great for a controlled environment.
